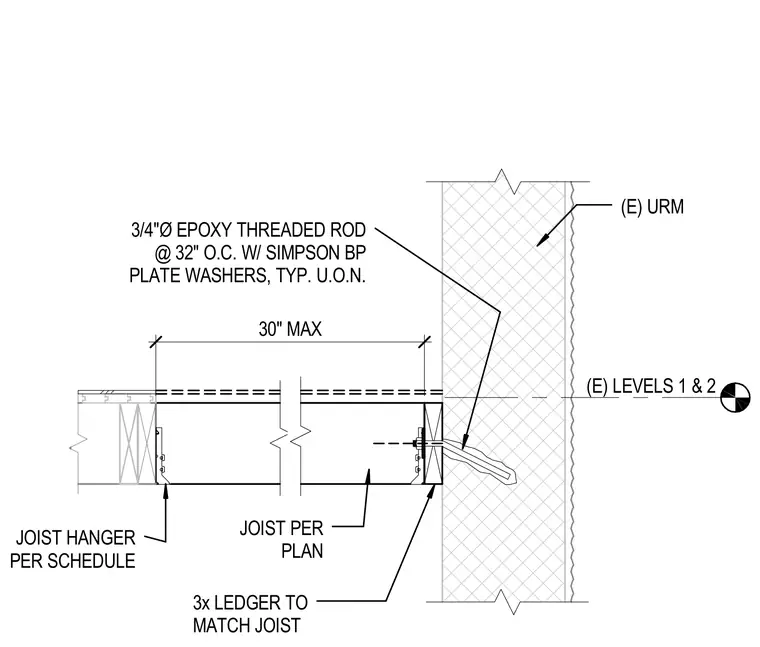

Joists sized per plan span across a framing opening up to 30 inches maximum, supported by joist hangers at each end. A 3x wood ledger matches the joist depth and fastens to an existing unreinforced masonry wall using 3/4-inch diameter epoxy-set threaded rods spaced at 32 inches on center with Simpson BP plate washers. The threaded rods anchor the ledger into the masonry wall while supporting the joist hanger assembly.
JOIST PER PLAN (E) URM 3x LEDGER TO MATCH JOIST (E) LEVELS 1 & 2 3/4"Ø EPOXY THREADED ROD @ 32" O.C. W/ SIMPSON BP PLATE WASHERS, TYP. U.O.N. JOIST HANGER PER SCHEDULE 30" MAX
