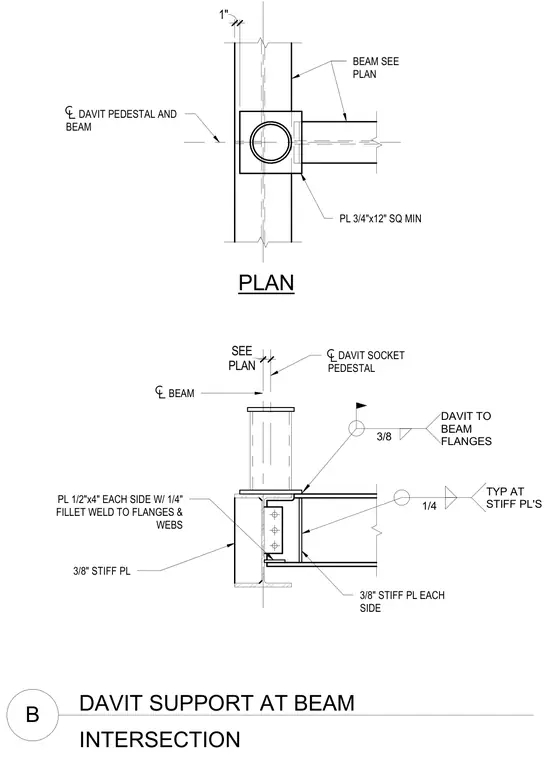

A structural steel davit support assembly sits at a beam intersection, featuring a square davit socket pedestal plate welded to the supporting steel beams. Three-eighths-inch stiffener plates are welded to the beam flanges and webs with quarter-inch fillet welds. Additional half-inch by four-inch plates are installed on each side with quarter-inch fillet welds to transfer loads effectively into the structural framing.
DAVIT SUPPORT AT BEAM B INTERSECTION PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT PEDESTAL AND BEAM BEAM SEE PLAN PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1"
