Structural · S-CSY5X

Beam Framing Into Wall Structural Section

Materials

Elements

About this detail

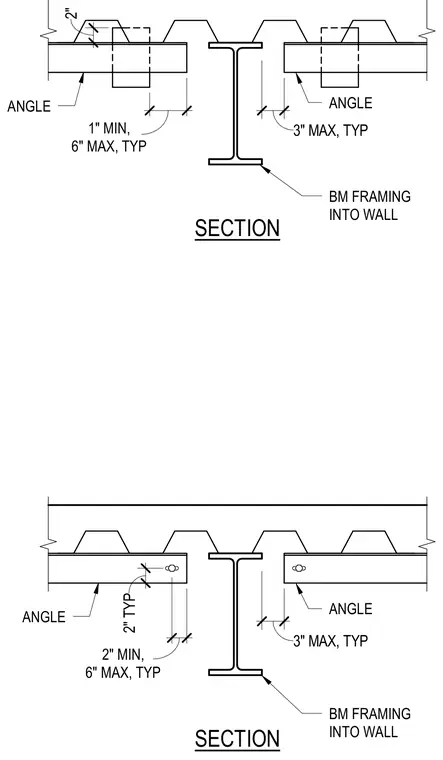

This structural section details a steel beam framing into a wall configuration with support angles. The assembly includes steel angles secured beneath the structural elements with dimensional clearances indicated as two inches typical, one inch minimum, and six inches maximum. Maximum spacing limits of three inches typical are maintained at the beam framing interface into the wall. Dimensions govern the placement and edge distances for the framing angles.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
