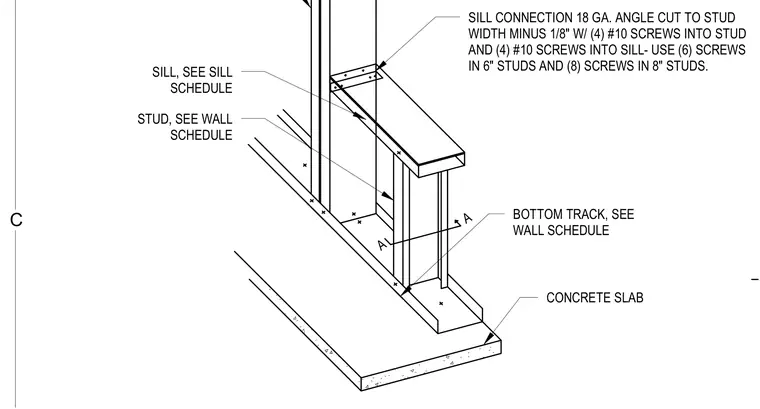

An eighteen-gauge sill angle is cut to the stud width minus one-eighth of an inch and secured with four number ten screws into the stud and four number ten screws into the sill. Use six screws in six-inch studs and eight screws in eight-inch studs. The vertical studs and bottom track bear on a concrete slab and are sized per the wall and sill schedules.
SILL CONNECTION 18 GA. ANGLE CUT TO STUD WIDTH MINUS 1/8" W/ (4) #10 SCREWS INTO STUD AND (4) #10 SCREWS INTO SILL- USE (6) SCREWS IN 6" STUDS AND (8) SCREWS IN 8" STUDS. BOTTOM TRACK, SEE WALL SCHEDULE CONCRETE SLAB STUD, SEE WALL SCHEDULE SILL, SEE SILL SCHEDULE A A C
