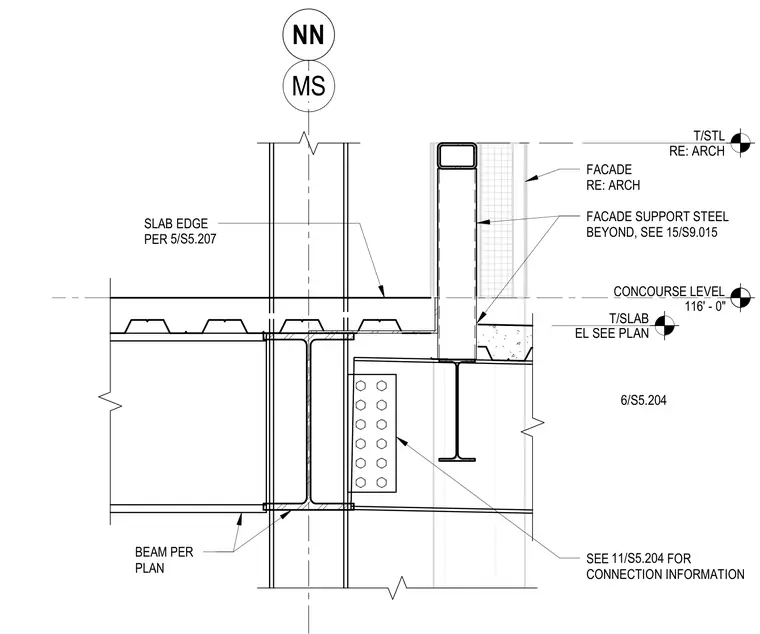

A perimeter beam connects to the supporting column via a shear plate with multiple bolts. The concrete slab edge extends past the beam, coordinating with facade support steel positioned beyond. The assembly aligns with the concourse level at elevation 116 feet zero inches, with structural steel and slab elevations referencing architectural drawings.
CONCOURSE LEVEL 116' - 0" NN MS FACADE RE: ARCH SLAB EDGE PER SEE FOR CONNECTION INFORMATION T/SLAB EL SEE PLAN 5/S5.207 11/S5.204 BEAM PER PLAN FACADE SUPPORT STEEL BEYOND, SEE 15/S9.015 6/S5.204 T/STL RE: ARCH
