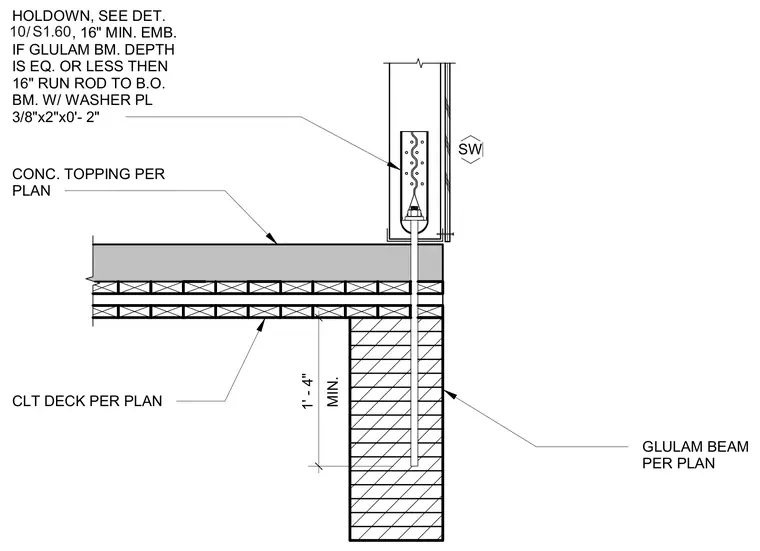

A structural holdown device connects to a glulam beam and shear wall assembly. The CLT deck receives a concrete topping per plan. A tension rod extends down into the glulam beam with a 3/8-inch by 2-inch by 2-inch washer plate. The holdown requires a minimum 16-inch embedment, or the rod extends to the bottom of the beam if the glulam depth is 16 inches or less.
HOLDOWN, SEE DET. , 16" MIN. EMB. IF GLULAM BM. DEPTH IS EQ. OR LESS THEN 16" RUN ROD TO B.O. BM. W/ WASHER PL 3/8"x2"x0'- 2" CONC. TOPPING PER PLAN GLULAM BEAM PER PLAN SW MIN. 1' - 4" / 10 S1.60 CLT DECK PER PLAN
