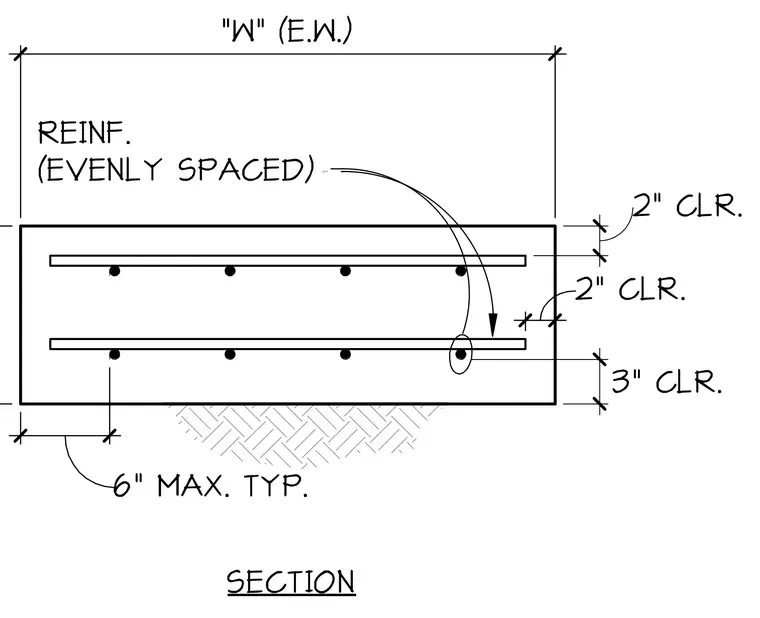

A concrete footing section shows evenly spaced reinforcing steel in each way with a three-inch clearance at the bottom and two-inch clearances elsewhere. Transverse spacing is maintained at a six-inch maximum typical dimension.
SECTION REINF. (EVENLY SPACED) "W" (E.W.) 3" CLR. 6" MAX. TYP. 2" CLR. TEXT 2" CLR.
