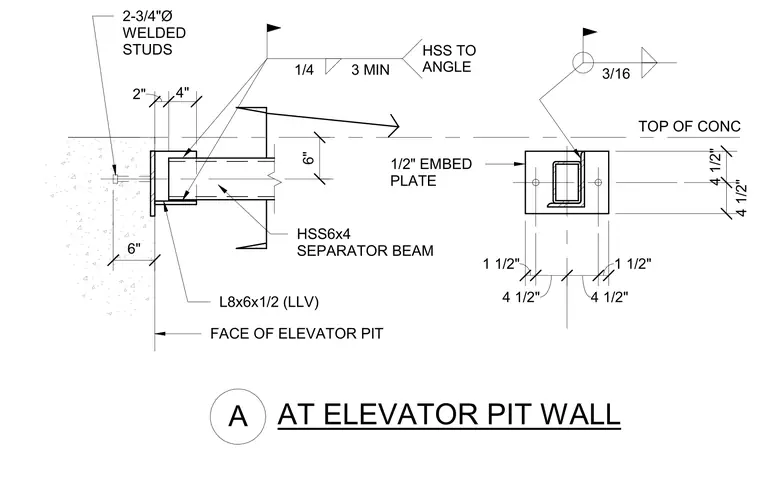

An HSS6x4 separator beam connects to a concrete elevator pit wall using a half-inch embed plate secured by two three-quarter-inch diameter welded studs. An L8x6x1/2 angle with long legs vertical is welded to the embed plate and the hollow structural section with a three-inch minimum fillet weld. A three-sixteenth-inch fillet weld secures the HSS to the angle. The assembly anchors the separator beam flush against the top of the concrete face of the elevator pit wall.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
