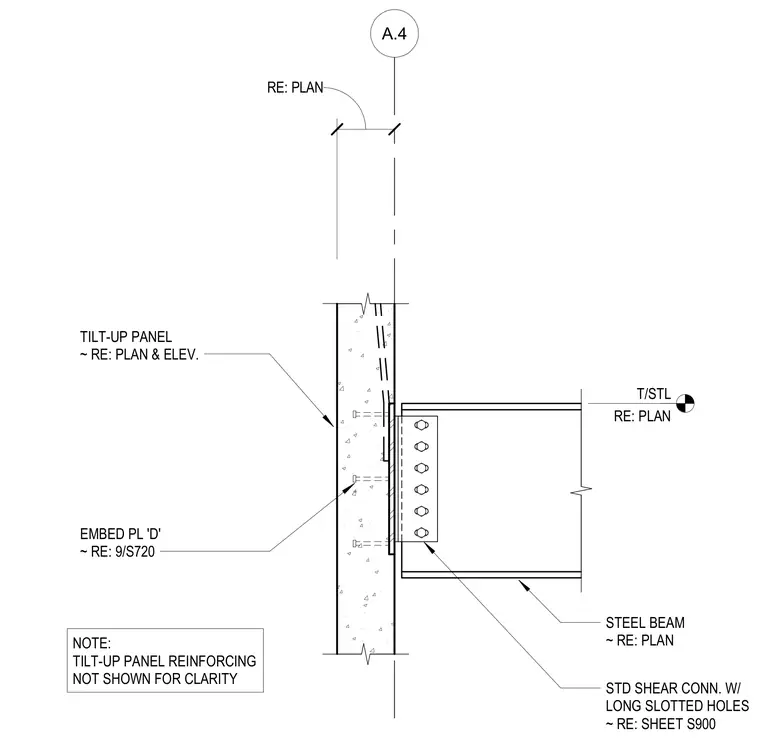

A steel beam bears against a tilt-up concrete panel via an embed plate 'D' anchored into the concrete wall. The steel beam connects to the embed plate using a standard shear connection with long slotted holes. Tilt-up panel reinforcing is omitted for clarity.
A.4 EMBED PL 'D' ~ RE: 9/S720 TILT-UP PANEL ~ RE: PLAN & ELEV. STEEL BEAM ~ RE: PLAN RE: PLAN NOTE: TILT-UP PANEL REINFORCING NOT SHOWN FOR CLARITY STD SHEAR CONN. W/ LONG SLOTTED HOLES ~ RE: SHEET S900 T/STL RE: PLAN
