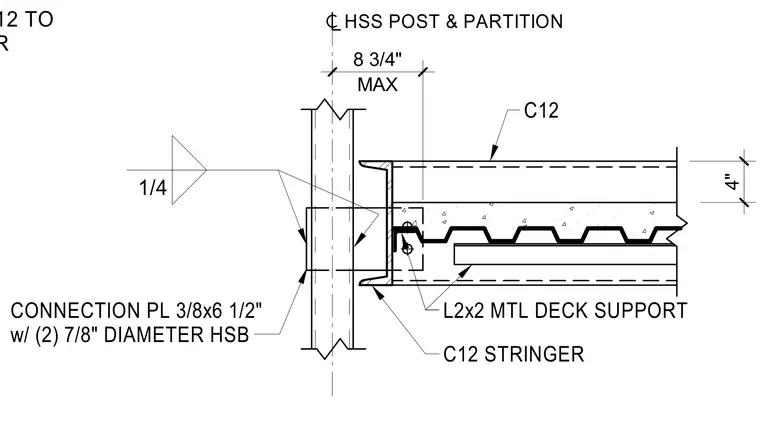

A C12 channel stringer connects to a 4-inch hollow structural section post and partition assembly via a 3/8-by-6-1/2-inch connection plate. The connection plate is secured with two 7/8-inch diameter high-strength bolts and welded with a 1/4-inch fillet weld. An L2x2 metal deck support angle bears beneath the metal deck infill. The maximum distance from the post centerline to the stringer face is 8-3/4 inches.
TYP AT C12 TO C12 MITER 4" HSS POST & PARTITION MAX 8 3/4" C12 C12 STRINGER L2x2 MTL DECK SUPPORT CONNECTION PL 3/8x6 1/2" w/ (2) 7/8" DIAMETER HSB 1/4
