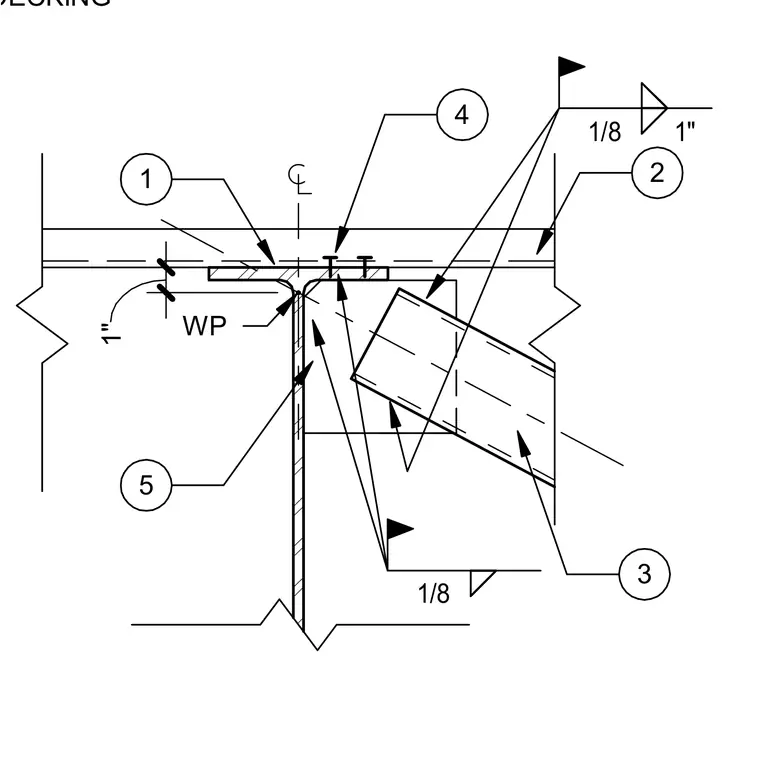

A diagonal structural strut connects to the underside of a supporting steel beam flange using a gusset plate assembly. The connection incorporates a working point at the intersection of members, secured with one-eighth-inch fillet welds. Metal decking bears across the top flange of the beam. Pins and welded anchors provide additional connection security at the framing junction.
1" WP 1/8 1/8 1" 1 2 (2) PDF PIN @ EA. BRACE. DECKING 3 4 5
