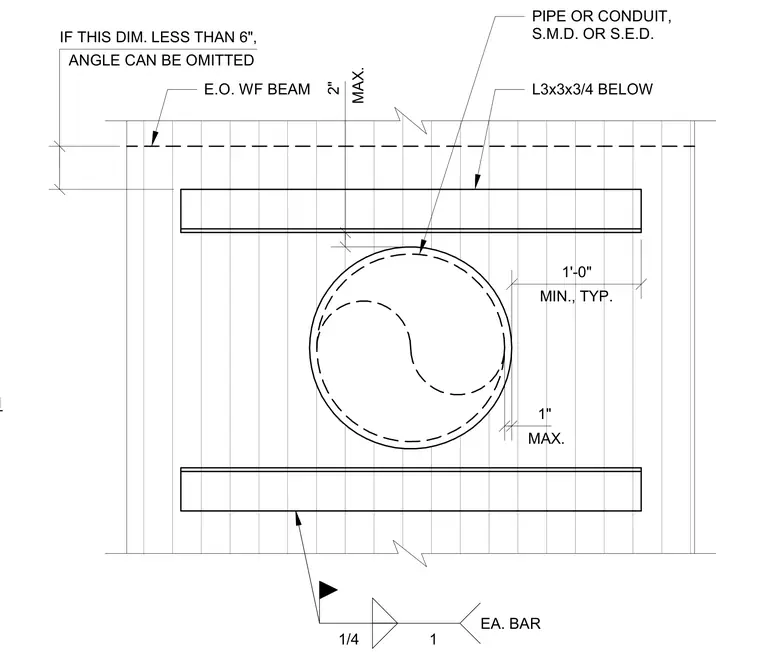

A typical pipe or conduit penetration through steel floor grating framed by wide-flange beams. A supporting angle member of size L3x3x3/4 is positioned below the grating and attached with a one-quarter inch fillet weld. Edge bars are secured with one each per bar. The detail specifies a minimum one foot typical clearance and a maximum one inch offset for the opening framing. If the dimension to the edge of the wide flange beam is less than six inches, the support angle may be omitted.
, 3 / S07-01 PIPE OR CONDUIT, S.M.D. OR S.E.D. L3x3x3/4 BELOW 2" MAX. MIN., TYP. 1'-0" 1" MAX. IF THIS DIM. LESS THAN 6", ANGLE CAN BE OMITTED E.O. WF BEAM 1/4 1 EA. BAR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
