TPO Roof Membrane and Parapet Coping Detail

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall Membrane / Roofing

Elements

Roofs Parapets Decks Waterproofing / Flashing Insulation Connections / Plates

About this detail

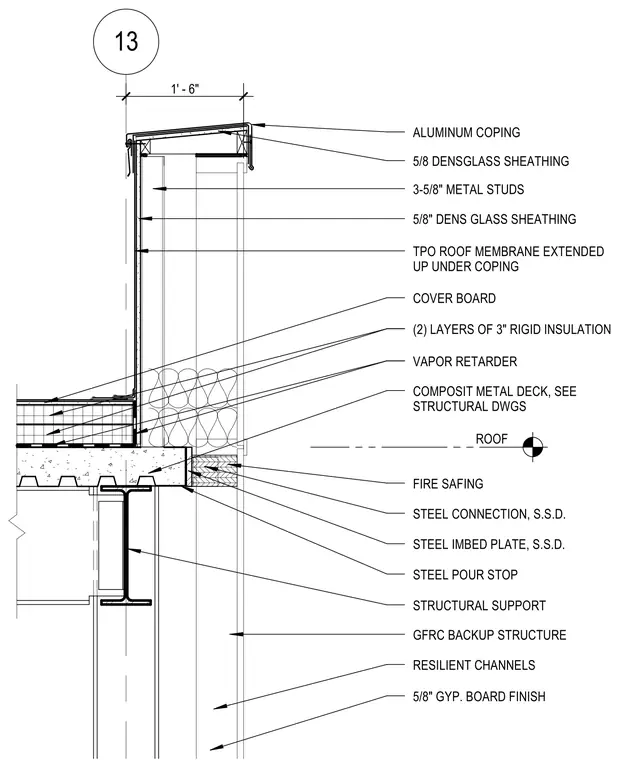

An aluminum coping caps the top of the parapet, secured over five-eighths inch DensGlass sheathing. The TPO roof membrane extends up the parapet wall and terminates under the coping. Two layers of three-inch rigid insulation and a cover board sit atop a vapor retarder and composite metal deck. The metal deck bears on a structural steel beam with a steel pour stop, embedded plate, and fire safing insulation. The interior face of the parapet and exterior wall utilize three and five-eighths inch metal studs, five-eighths inch DensGlass sheathing, resilient channels, and a five-eighths inch gypsum board finish backed by a glass fiber reinforced concrete structure.
