Typical Steel Beam to Steel Beam Connection

Materials

Concrete Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Composite

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Floors / Slabs Decks Arches Connections / Plates

Connections

Shear Stud / Composite Deck Attachment

About this detail

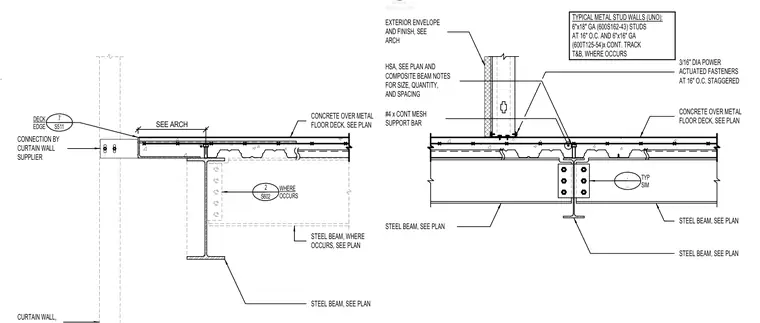

Standard steel beam-to-beam framing conditions support a concrete slab over a metal floor deck. The floor construction incorporates headed shear anchors sized per plan alongside a continuous number 4 mesh support bar. At the perimeter condition, a steel beam supports a deck edge with a connection provided by the curtain wall supplier. An interior condition features a cold-formed metal stud wall constructed with six-inch by eighteen-gauge studs spaced at sixteen inches on center and continuous top and bottom tracks, secured to the floor assembly using three-sixteenth-inch diameter power-actuated fasteners staggered at sixteen inches on center.
