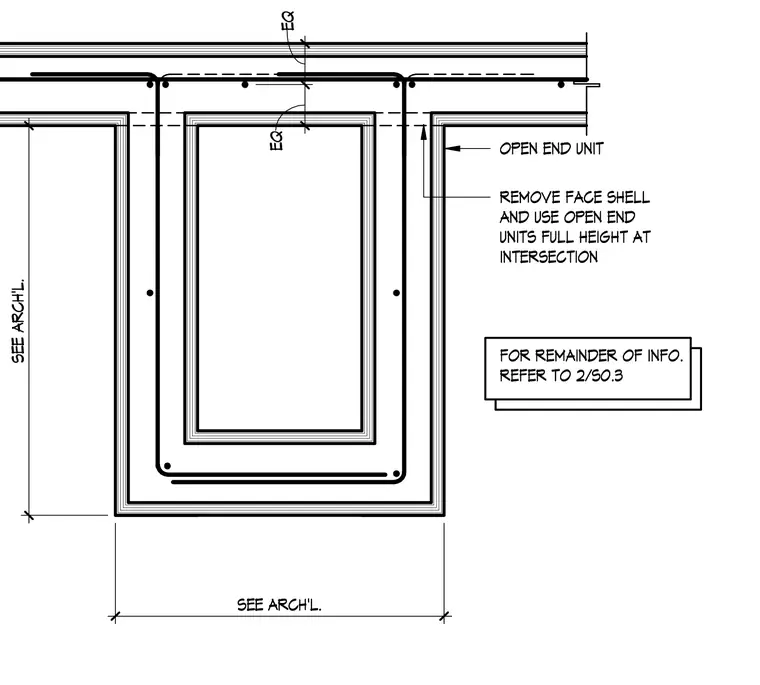

Open end masonry units are specified full height at the wall intersection with face shells removed to accommodate continuous vertical and horizontal reinforcing bars. Equal spacing dimensions govern the layout around the junction. Additional architectural information and dimensions are referenced per architectural drawings and detail 2/S0.3.
OPEN END UNIT REMOVE FACE SHELL AND USE OPEN END UNITS FULL HEIGHT AT INTERSECTION EQ EQ SEE ARCH'L. SEE ARCH'L. FOR REMAINDER OF INFO. REFER TO 2/S0.3
