Structural · S-CRQVK

Side-By-Side Openings

Materials

Concrete Reinforced Concrete

Elements

Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Embed Plate

About this detail

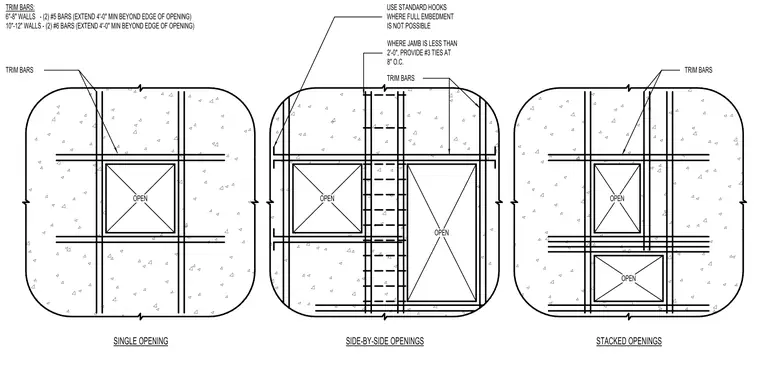

Reinforced concrete wall openings require specific trim bar placement around single, side-by-side, and stacked configurations to maintain structural integrity. Six to eight inch thick walls utilize two number five bars for trim reinforcement, while ten to twelve inch thick walls use two number six bars, with all trim bars extending a minimum of four feet beyond the edge of the opening. Standard hooks are specified where full embedment is not possible. Additionally, where wall jambs are less than two feet wide, number three ties are provided at eight inches on center.
