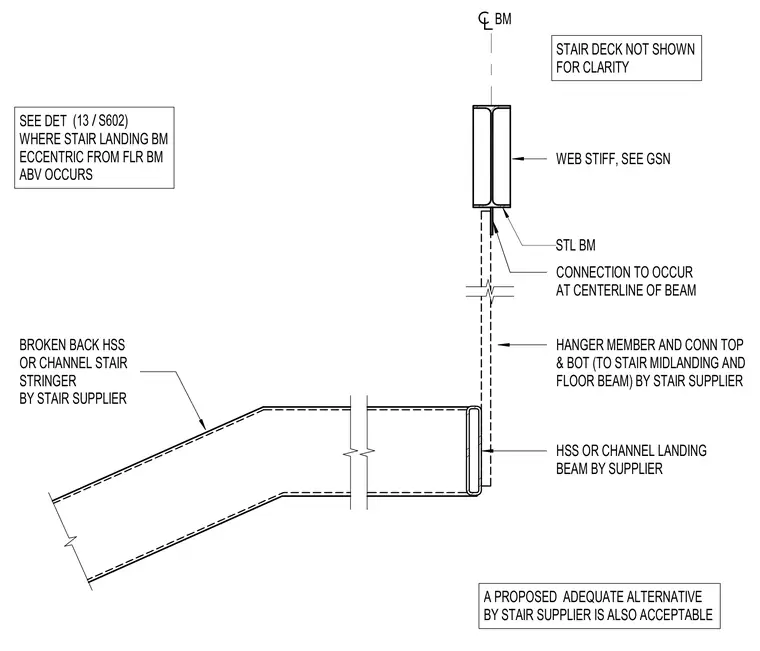

A structural steel floor beam receives a hanger member connecting to the stair midlanding and floor beam, provided by the stair supplier. The connection occurs at the centerline of the beam, with web stiffeners added per general structural notes. A broken-back hollow structural section or channel stair stringer frames into an HSS or channel landing beam. Stair deck is omitted for clarity.
STL BM WEB STIFF, SEE GSN BROKEN BACK HSS OR CHANNEL STAIR STRINGER BY STAIR SUPPLIER BM HSS OR CHANNEL LANDING BEAM BY SUPPLIER HANGER MEMBER AND CONN TOP & BOT (TO STAIR MIDLANDING AND FLOOR BEAM) BY STAIR SUPPLIER CONNECTION TO OCCUR AT CENTERLINE OF BEAM SEE DET WHERE STAIR LANDING BM ECCENTRIC FROM FLR BM ABV OCCURS STAIR DECK NOT SHOWN FOR CLARITY A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE / (13 S602)
