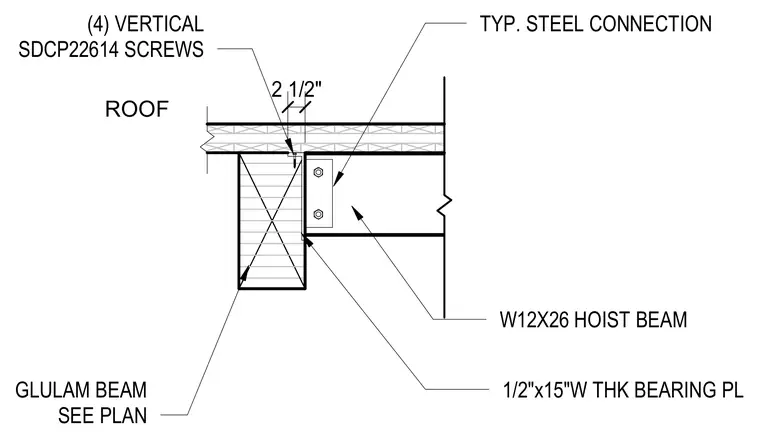

A W12x26 steel hoist beam connects to a glulam timber beam sized per plan at the roof level. A half-inch by fifteen-inch wide thick bearing plate sits beneath the steel connection, secured with four vertical SDCP22614 structural screws.
W12X26 HOIST BEAM TYP. STEEL CONNECTION ROOF 2 1/2" 1/2"x15"W THK BEARING PL (4) VERTICAL SDCP22614 SCREWS GLULAM BEAM SEE PLAN
