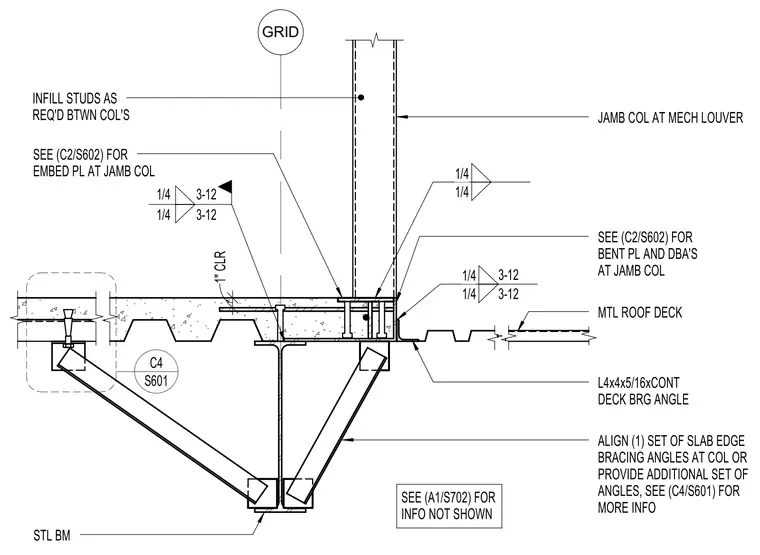

A structural steel jamb column at a mechanical louver is supported by a steel beam and metal roof deck assembly at the penthouse floor. A continuous L4x4x5/16 deck bearing angle is welded with quarter-inch fillet welds, maintaining a one-inch clearance. Slab edge bracing angles align at the column with additional sets provided per specified sheet references. Infill studs are placed between columns as required, and bent plates with deformed bar anchors connect at the jamb column.
MTL ROOF DECK STL BM GRID L4x4x5/16xCONT DECK BRG ANGLE 1" CLR SEE (A1/S702) FOR INFO NOT SHOWN 1/4 1/4 3-12 3-12 1/4 3-12 1/4 3-12 S601 C4 ALIGN (1) SET OF SLAB EDGE BRACING ANGLES AT COL OR PROVIDE ADDITIONAL SET OF ANGLES, SEE (C4/S601) FOR MORE INFO SEE (C2/S602) FOR BENT PL AND DBA'S AT JAMB COL 1/4 1/4 SEE (C2/S602) FOR EMBED PL AT JAMB COL INFILL STUDS AS REQ'D BTWN COL'S JAMB COL AT MECH LOUVER
