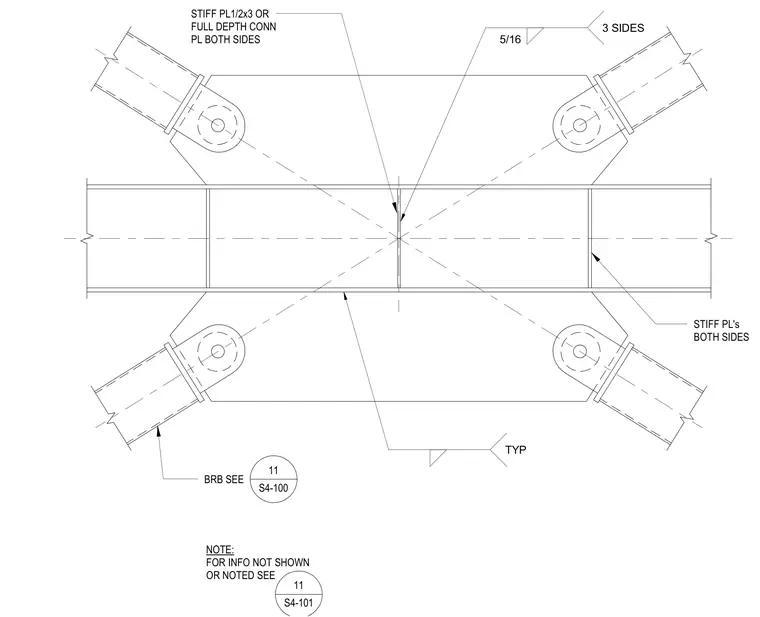

A buckling restrained brace connects to a steel beam midspan using gusset plates and stiffener plates on both sides. The connection is welded with 5/16-inch welds applied to three sides. Stiffener plates measuring 1/2 by 3 inches or full-depth connection plates are provided on both sides of the web. Additional configuration details are referenced on sheet S4-100 and sheet S4-101.
11 S4-100 11 S4-101 TYP 5/16 3 SIDES BRB SEE STIFF PL's BOTH SIDES NOTE: FOR INFO NOT SHOWN OR NOTED SEE STIFF PL1/2x3 OR FULL DEPTH CONN PL BOTH SIDES
