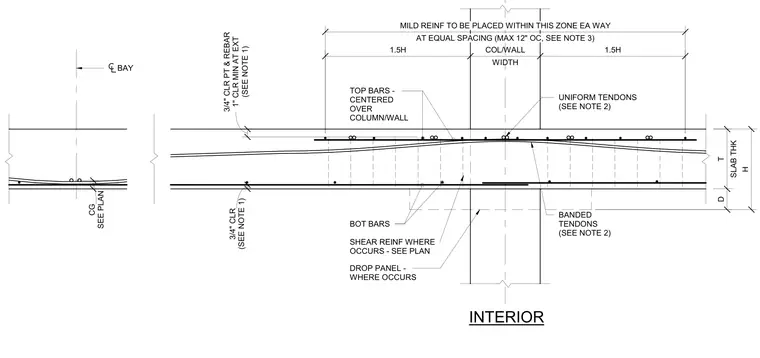

A post-tensioned concrete slab bears on a concrete column or wall. Banded and uniform post-tensioning tendons are profiled through the slab thickness, supplemented by top and bottom mild reinforcing bars. A drop panel is included where required, along with optional shear reinforcement centered over the support. Clearances are specified as three-quarters of an inch for post-tensioning and rebar, with one inch minimum at exterior conditions. Mild reinforcement is spaced at a maximum of twelve inches on center within the designated column strip zones.
BAY BOT BARS TOP BARS - CENTERED OVER COLUMN/WALL UNIFORM TENDONS (SEE NOTE 2) BANDED TENDONS (SEE NOTE 2) SEE PLAN CG (SEE NOTE 1) 3/4" CLR PT & REBAR 1" CLR MIN AT EXT (SEE NOTE 1) 3/4" CLR DROP PANEL - WHERE OCCURS 1.5H WIDTH COL/WALL 1.5H D SLAB THK T H AT EQUAL SPACING (MAX 12" OC, SEE NOTE 3) MILD REINF TO BE PLACED WITHIN THIS ZONE EA WAY SHEAR REINF WHERE OCCURS - SEE PLAN INTERIOR
