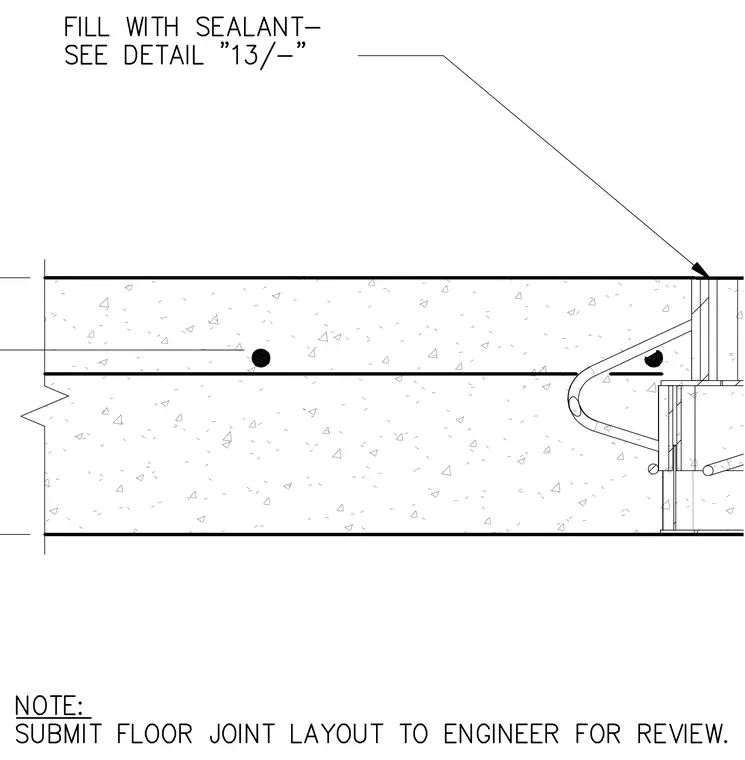

An expansion joint within a concrete slab is detailed with continuous reinforcing bars and specialized joint hardware embedded in the concrete. The joint gap is filled with sealant at the surface, referenced to detail 13. A construction note requires the floor joint layout to be submitted to the engineer for review.
