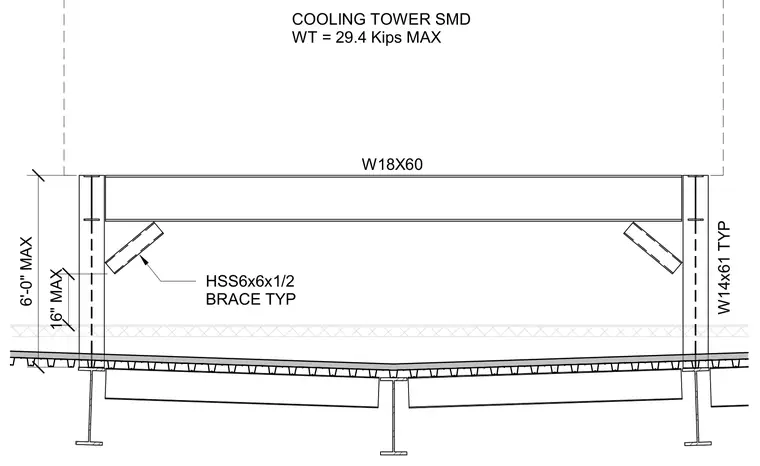

This structural detail shows a cooling tower support framing assembly with a maximum weight of 29.4 kips. The framing consists of a W18x60 wide flange beam supported by W14x61 columns, braced typically with HSS6x6x1/2 hollow structural section diagonal braces. Dimensions indicate a maximum vertical clearance of 6'-0" and a 16" maximum offset for the brace connection.
W18X60 W14x61 TYP HSS6x6x1/2 BRACE TYP 6'-0" MAX 16" MAX COOLING TOWER SMD WT = 29.4 Kips MAX
