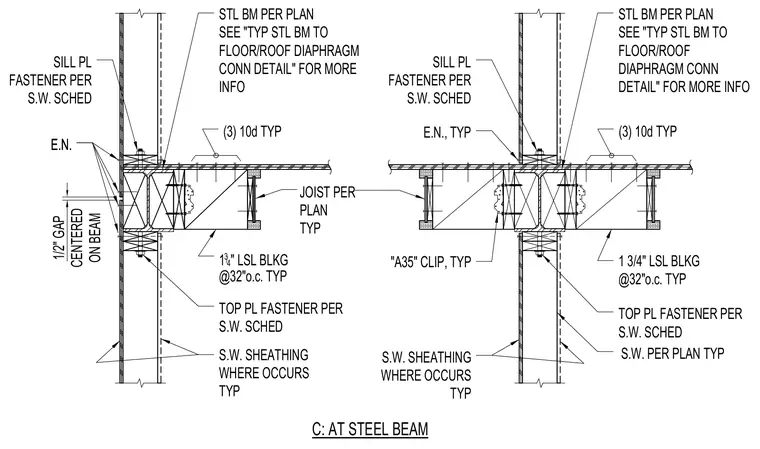

Connection of wood framing to a steel beam supporting floor or roof assemblies. The structural steel beam per plan receives a sill plate and top plate fastened according to the structural wood schedule. A one-half inch gap is centered on the beam top plate. Joists per plan frame into the assembly using A35 clips secured with three ten-penny nails typically, alongside one-and-three-quarter-inch laminated strand lumber blocking spaced at thirty-two inches on center. Shear wall sheathing is applied where indicated per plan.
E.N. C: AT STEEL BEAM 1/2" GAP CENTERED ON BEAM TOP PL FASTENER PER S.W. SCHED E.N., TYP S.W. SHEATHING WHERE OCCURS TYP S.W. PER PLAN TYP 1 3/4" LSL BLKG @32"o.c. TYP E.N. 1 3 / 4 " LSL BLKG @32"o.c. TYP S.W. SHEATHING WHERE OCCURS TYP TOP PL FASTENER PER S.W. SCHED SILL PL FASTENER PER S.W. SCHED STL BM PER PLAN SEE "TYP STL BM TO FLOOR/ROOF DIAPHRAGM CONN DETAIL" FOR MORE INFO SILL PL FASTENER PER S.W. SCHED STL BM PER PLAN SEE "TYP STL BM TO FLOOR/ROOF DIAPHRAGM CONN DETAIL" FOR MORE INFO JOIST PER PLAN TYP (3) 10d TYP (3) 10d TYP "A35" CLIP, TYP
