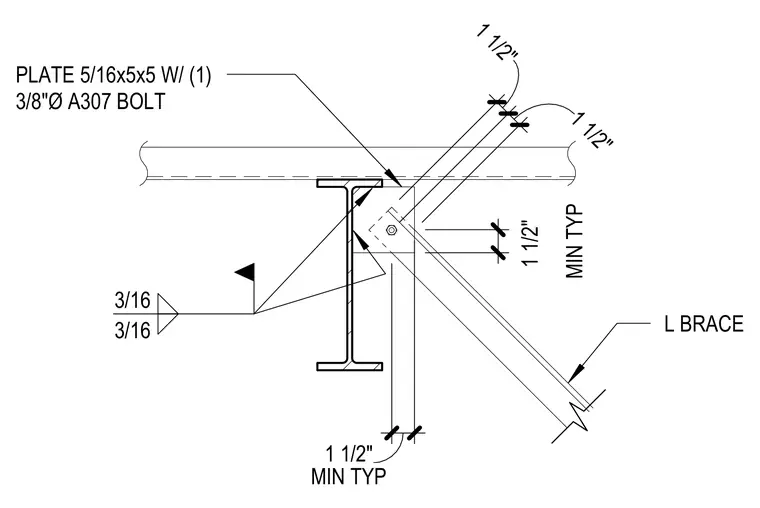

An angle brace connects to the underside of a steel beam flange using a five-sixteenths-inch by five-inch by five-inch gusset plate. The plate attaches to the beam web with three-sixteenths-inch fillet welds. A single three-eighths-inch-diameter ASTM A307 bolt secures the angle brace to the gusset plate with one-and-a-half-inch minimum edge distances.
L BRACE PLATE 5/16x5x5 W/ (1) 3/8"Ø A307 BOLT MIN TYP 1 1/2" MIN TYP 1 1/2" 3/16 3/16 1 1/2" 1 1/2"
