Structural · S-CQ9HN

Shear Connector Plates At Skewed Members

Materials

Connections

About this detail

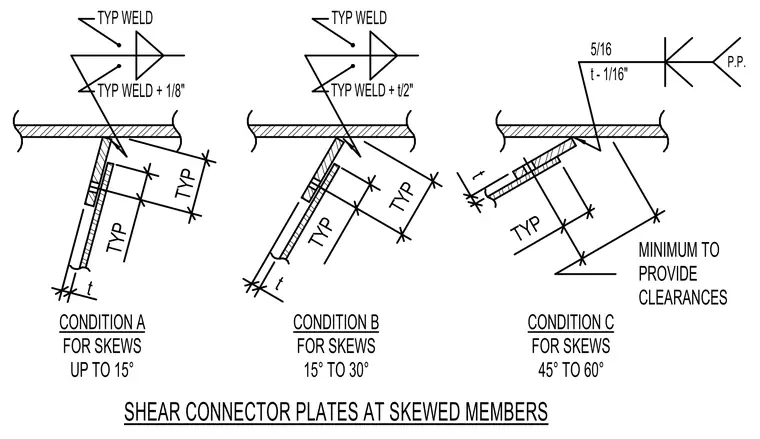

Shear connector plate configurations for structural steel framing at skewed members across three distinct conditions. Condition A addresses skews up to fifteen degrees, Condition B covers skews from fifteen to thirty degrees, and Condition C provides for skews from forty-five to sixty degrees. The connection details specify typical fillet welds, plate thicknesses denoted as t, and dimensional adjustments including t minus one-sixteenth inch, typical welds plus one-eighth inch, and typical welds plus t divided by two. Clearances and minimum dimensions are detailed to ensure proper fit-up and weld access for skewed framing conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
