A pipe trench footing features a PVC schedule 40 pipe sleeve positioned at the bottom of the sleeve. The pipe sleeve is specified to be two inches larger in diameter than the pipe. Excavation below the indicated line is restricted unless allowed by the project soils engineer per the soils report. Footing reinforcing type and spacing are referenced on other details, and a minimum four-inch clearance requires notifying the engineer at other conditions.

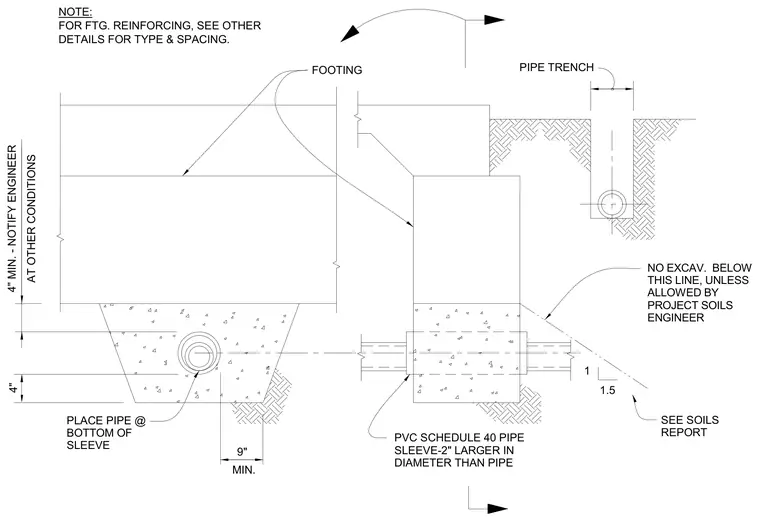

PIPE TRENCH FOOTING 9" MIN. 4" 1 1.5 PLACE PIPE @ BOTTOM OF SLEEVE PVC SCHEDULE 40 PIPE SLEEVE-2" LARGER IN DIAMETER THAN PIPE SEE SOILS REPORT NO EXCAV. BELOW THIS LINE, UNLESS ALLOWED BY PROJECT SOILS ENGINEER NOTE: FOR FTG. REINFORCING, SEE OTHER DETAILS FOR TYPE & SPACING. 4" MIN. - NOTIFY ENGINEER AT OTHER CONDITIONS
