Structural · S-CQ58F

Typical Concrete Tilt-Up Panel Corner

Materials

Concrete Steel

Elements

Roofs Floors / Slabs Decks Arches Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Welded Connection Deck Attachment Embed Plate

About this detail

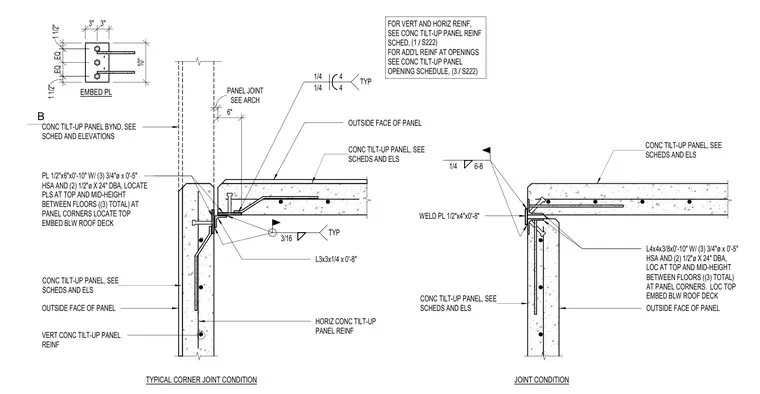

A typical concrete tilt-up wall panel corner joint reinforced with embedded plates, structural angles, and dowel bars. The assembly utilizes an L3x3x1/4 by zero-foot-eight-inch angle and a half-inch by six-inch by zero-foot-ten-inch plate equipped with three three-quarter-inch-diameter by zero-foot-five-inch headed stud anchors and two half-inch-diameter by twenty-four-inch dowel bar anchors. Additional corner framing includes an L4x4x3/8 by zero-foot-ten-inch angle with matching headed stud anchors and dowels, located at the top and mid-height between floors with three total per panel corner. A half-inch by four-inch by zero-foot-eight-inch plate is welded with a one-quarter-inch fillet weld to tie the adjacent tilt-up panels together. Vertical and horizontal concrete tilt-up panel reinforcement is placed per schedule at the outside face of the panel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
