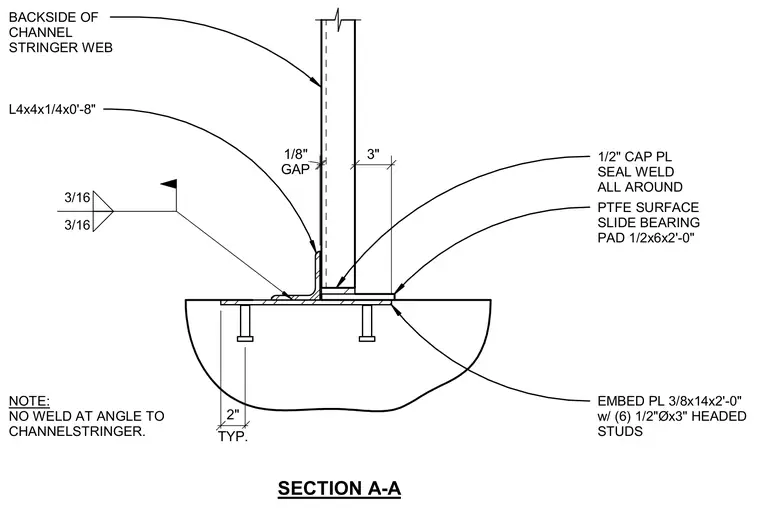

A stair channel stringer bears on a PTFE surface slide bearing pad measuring one-half inch by six inches by two feet zero inches. The slide pad sits atop a three-eighths-inch by fourteen-inch by two-foot-zero-inch embed plate secured with six one-half-inch diameter by three-inch headed studs. An L4x4xone-quarter-inch by zero-foot-eight-inch angle connects to the backside of the channel stringer web with a one-eighth-inch gap, left unwelded to the channel stringer per the drawing note. Three-sixteenths-inch fillet welds secure the angle to a one-half-inch cap plate featuring a seal weld all around.
SECTION A-A TYP. 2" 1/2" CAP PL SEAL WELD ALL AROUND PTFE SURFACE SLIDE BEARING PAD 1/2x6x2'-0" EMBED PL 3/8x14x2'-0" w/ (6) 1/2"Øx3" HEADED STUDS L4x4x1/4x0'-8" BACKSIDE OF CHANNEL STRINGER WEB GAP 1/8" 3" 3/16 3/16 NOTE: NO WELD AT ANGLE TO CHANNELSTRINGER.
