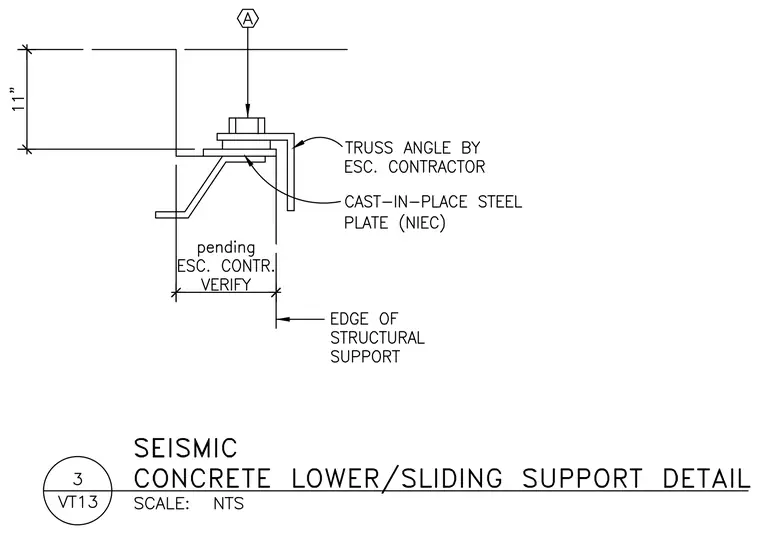

This seismic concrete lower and sliding support detail connects a truss angle provided by the escalator contractor to a cast-in-place steel plate. An eleven-inch vertical dimension establishes the offset from the structural support edge. The truss angle sits above the cast-in-place steel plate with an adjustable sliding connection secured by a bolted assembly. The dimensional clearance to the edge of the structural support requires field verification by the escalator contractor.
