Structural · S-CPTXA

Davit Support Offset at Column

Materials

Steel

Elements

Columns Beams

Connections

Welded Connection

About this detail

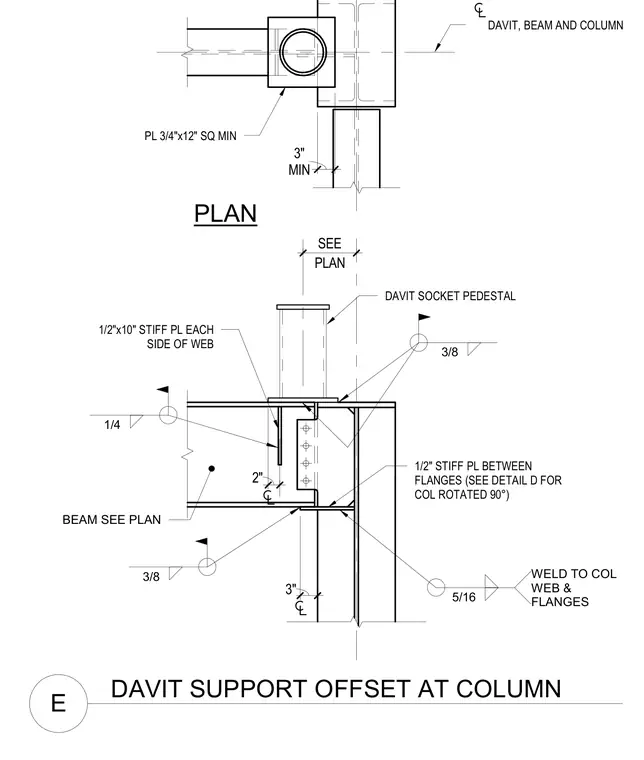

A structural steel davit support is offset at a column with a three-quarter-inch by twelve-inch square davit socket pedestal plate welded to the supporting framing. Half-inch by ten-inch stiffener plates are welded to each side of the beam web, accompanied by a half-inch stiffener plate between the column flanges. Fillet welds of various sizes, including one-quarter inch, three-eighths inch, and five-sixteenths inch, secure the plates to the column web and flanges.
