Sloped Roof End Framing and Curtain Wall Connection

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Curtain Walls Facades / Cladding Roofs Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection Welded Connection Timber / Mass-Timber Connection

About this detail

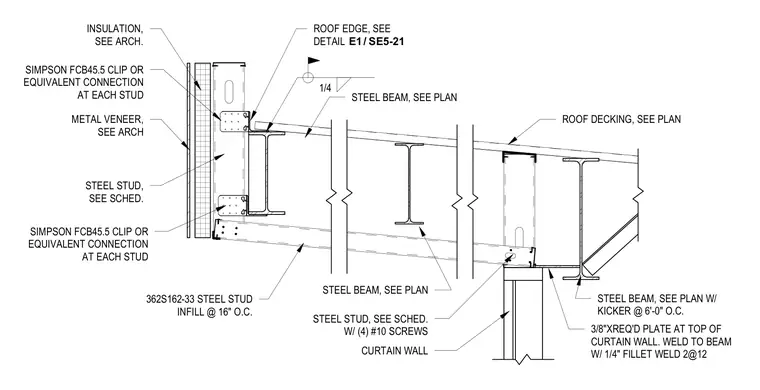

Sloped roof end framing is supported by structural steel beams and steel stud infill at sixteen inches on center. The curtain wall framing connects to the steel beams using Simpson FCB45.5 clips or equivalent connections at each stud. A three-eighths-inch required plate sits at the top of the curtain wall and welds to the beam with a quarter-inch fillet weld at twelve inches on center. Additional support is provided by steel beams sized per plan with a kicker at six feet on center. Insulation, metal veneer, and roof decking are integrated per architectural specifications.
