A reinforced concrete housekeeping pad rests on a slab-on-grade with a minimum thickness of six inches and a typical height between four and six inches. The pad is reinforced with number three reinforcing bars at twelve inches on center each way and features a three-quarter inch clearance. Connection to the supporting slab is achieved using number three dowels with standard ninety-degree hooks at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. These dowels are set into drilled half-inch diameter by four-inch deep holes cleaned and secured with epoxy. Vertical corners receive a three-quarter inch chamfer while horizontal edges have a half-inch radius.

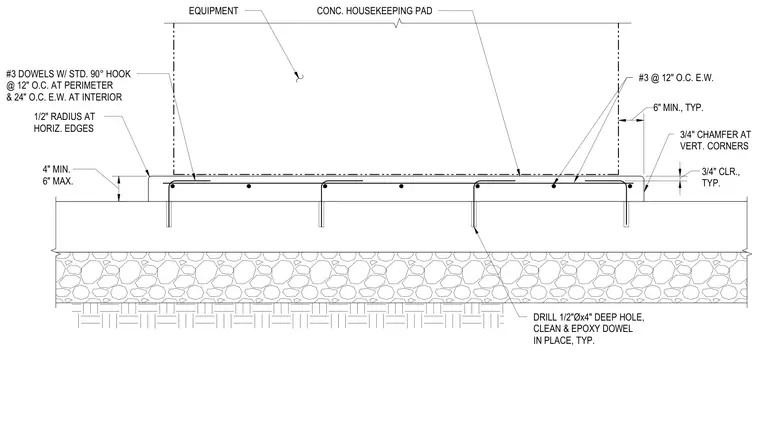

1/2" RADIUS AT HORIZ. EDGES #3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 3/4" CLR., TYP. 4" MIN. 6" MAX.
