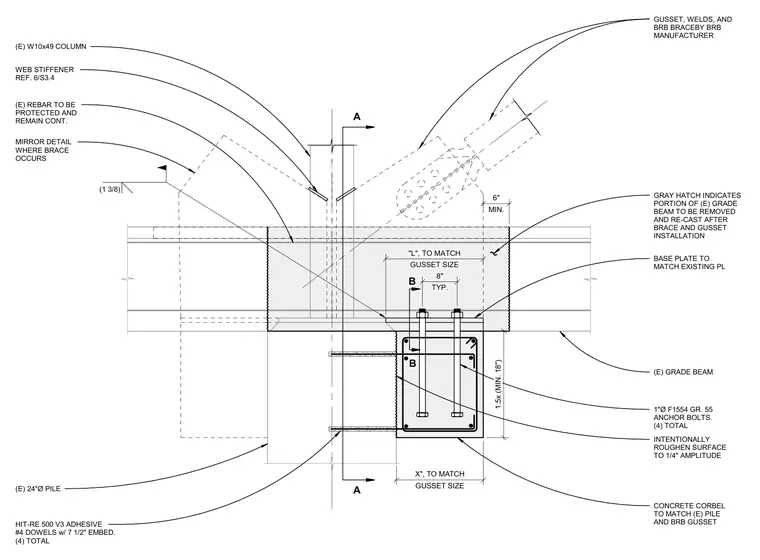

A buckling-restrained brace connects to an existing W10x49 steel column and concrete grade beam supported by a twenty-four-inch diameter pile. A new concrete corbel is doweled into the pile using four total number four dowels with seven and one-half inches of embedment set in HIT-RE 500 V3 adhesive, featuring an intentionally roughened surface to one-quarter inch amplitude. Four total one-inch diameter ASTM F1554 Grade 55 anchor bolts secure a base plate matching the existing plate to the grade beam and concrete corbel. A gusset plate connects the buckling-restrained brace to the assembly, with a gray hatch indicating the portion of the existing grade beam to be removed and re-cast after the brace and gusset installation. Web stiffeners are provided on the existing W10x49 column, and existing reinforcing rebar is to be protected and remain continuous.
(E) W10x49 COLUMN WEB STIFFENER REF. 6/S3.4 (E) REBAR TO BE PROTECTED AND REMAIN CONT. MIRROR DETAIL WHERE BRACE OCCURS (E) 24"Ø PILE HIT-RE 500 V3 ADHESIVE #4 DOWELS w/ 7 1/2" EMBED. (4) TOTAL 1"Ø F1554 GR. 55 ANCHOR BOLTS. (4) TOTAL CONCRETE CORBEL TO MATCH (E) PILE AND BRB GUSSET (E) GRADE BEAM BASE PLATE TO MATCH EXISTING PL GRAY HATCH INDICATES PORTION OF (E) GRADE BEAM TO BE REMOVED AND RE-CAST AFTER BRACE AND GUSSET INSTALLATION TYP. 8" MIN. 6" GUSSET, WELDS, AND BRB BRACEBY BRB MANUFACTURER GUSSET SIZE X", TO MATCH 1.5x (MIN. 18") (1 3/8) A A INTENTIONALLY ROUGHEN SURFACE TO 1/4" AMPLITUDE B B GUSSET SIZE "L", TO MATCH
