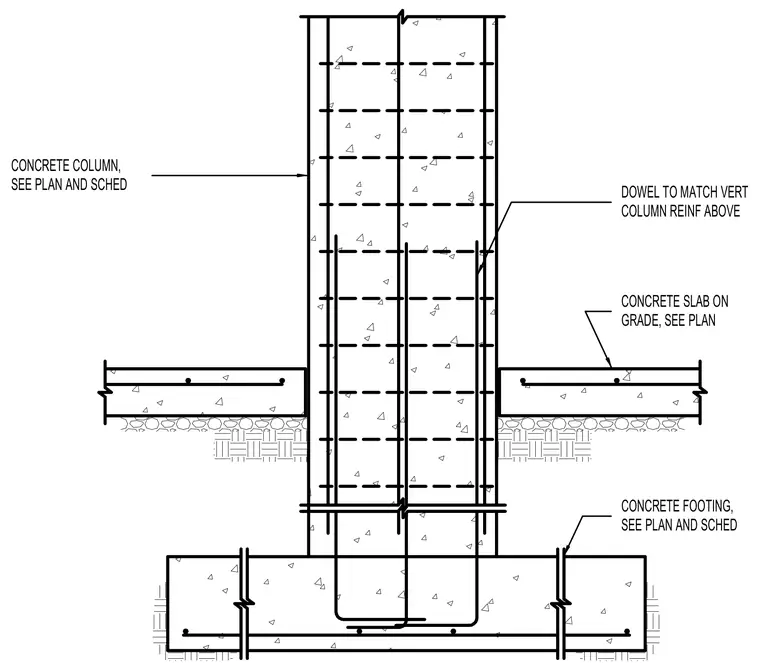

A reinforced concrete column bears on a concrete footing sized per plan and schedule. Vertical column reinforcement is tied into dowels anchored within the footing. A concrete slab on grade frames into the column base, with sizes and reinforcement detailed per structural plans.
DOWEL TO MATCH VERT COLUMN REINF ABOVE CONCRETE FOOTING, SEE PLAN AND SCHED CONCRETE COLUMN, SEE PLAN AND SCHED CONCRETE SLAB ON GRADE, SEE PLAN
