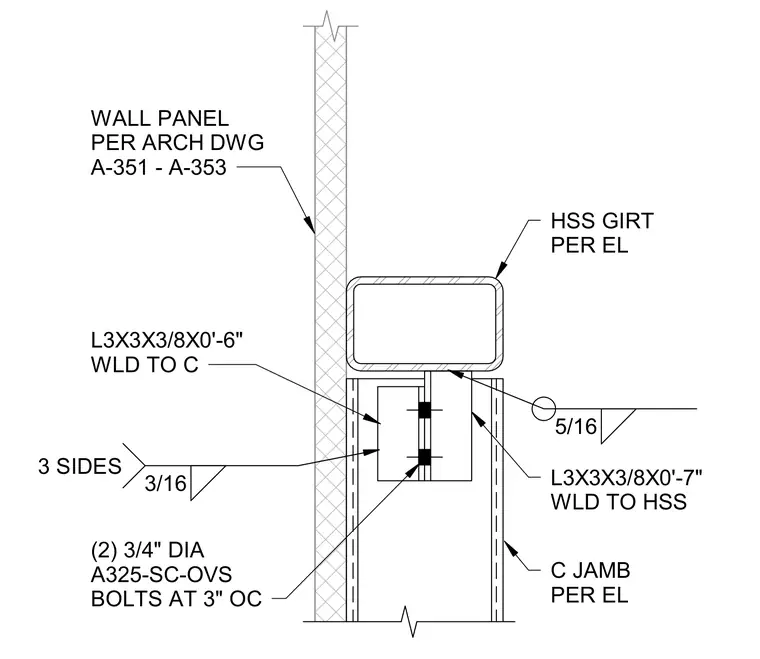

An HSS girt is supported by a channel jamb with two 3/4 inch diameter A325-SC-OVS bolts spaced at 3 inches on center through connecting steel angles. A 3x3x3/8 inch angle measuring 7 inches long is welded to the HSS girt with a 5/16 inch fillet weld. A matching 3x3x3/8 inch angle measuring 6 inches long is welded to the channel jamb with a 3/16 inch fillet weld on three sides. An exterior wall panel is positioned outboard of the framing per architectural drawings.
3/16 3 SIDES 5/16 HSS GIRT PER EL C JAMB PER EL L3X3X3/8X0'-7" WLD TO HSS L3X3X3/8X0'-6" WLD TO C (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC WALL PANEL PER ARCH DWG A-351 - A-353
