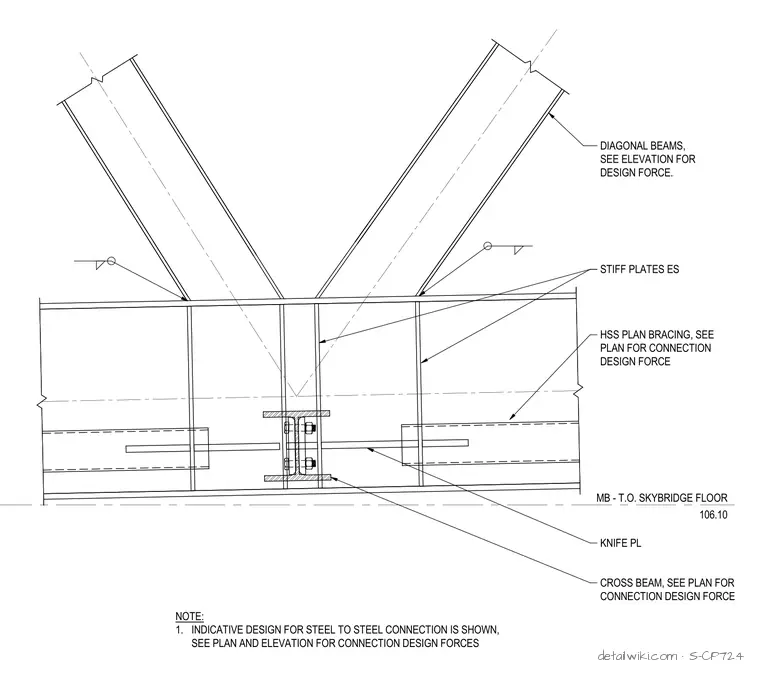

S-CP724 — Typical Diagonal Member Connection

Structural · S-CP724

Typical Diagonal Member Connection

Units: metric
Sheet: S-MB-5.31
Discipline: Structural

Materials

Elements

Beams Bracing Connections / Plates Floors / Slabs

Connections

Bracing Connection HSS Connection

Text on the drawing

CROSS BEAM, SEE PLAN FOR CONNECTION DESIGN FORCE DIAGONAL BEAMS, SEE ELEVATION FOR DESIGN FORCE. HSS PLAN BRACING, SEE PLAN FOR CONNECTION DESIGN FORCE KNIFE PL NOTE: 1. INDICATIVE DESIGN FOR STEEL TO STEEL CONNECTION IS SHOWN, SEE PLAN AND ELEVATION FOR CONNECTION DESIGN FORCES MB - T.O. SKYBRIDGE FLOOR 106.10 STIFF PLATES ES

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
