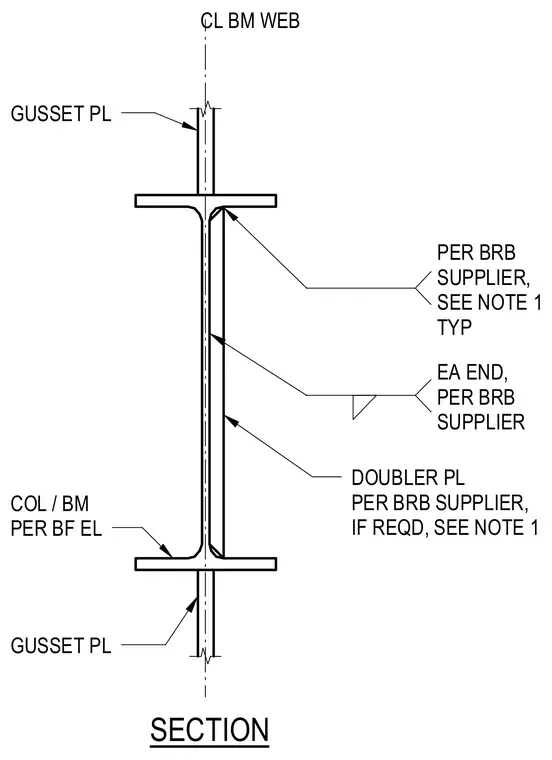

A gusset plate aligns with the centerline of the beam web and connects to a column or beam detailed per the framing elevation. A doubler plate is provided against the web as required by the buckling-restrained brace supplier, with welding specified at each end per the supplier requirements.
DOUBLER PL PER BRB SUPPLIER, IF REQD, SEE NOTE 1 GUSSET PL COL / BM PER BF EL CL BM WEB SECTION EA END, PER BRB SUPPLIER PER BRB SUPPLIER, SEE NOTE 1 TYP GUSSET PL
