Canopy Beam to Beam at Storefront Detail

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Storefronts Roofs Canopies Decks Arches

Connections

HSS Connection Beam-to-Beam Deck Attachment

About this detail

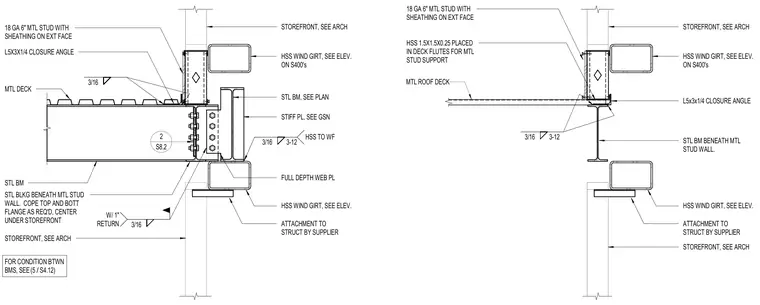

A structural beam-to-beam connection supports a canopy system interfacing with a storefront and hollow structural section wind girts. A steel beam features top and bottom flanges coped as required, framed into a supporting member using a full-depth web plate and a 3/16-inch fillet weld with a 1-inch return. A stiffener plate is provided at the connection per general structural notes, alongside structural steel blocking beneath an 18-gauge, 6-inch metal stud wall with exterior sheathing. A 5x3x1/4-inch closure angle sits beneath the storefront assembly. Metal roof deck bears on the steel framing, with small hollow structural section spacers placed in the deck flutes for metal stud support. Additional hollow structural section wind girts are attached via supplier-provided connections at the top and bottom of the storefront elevation.
