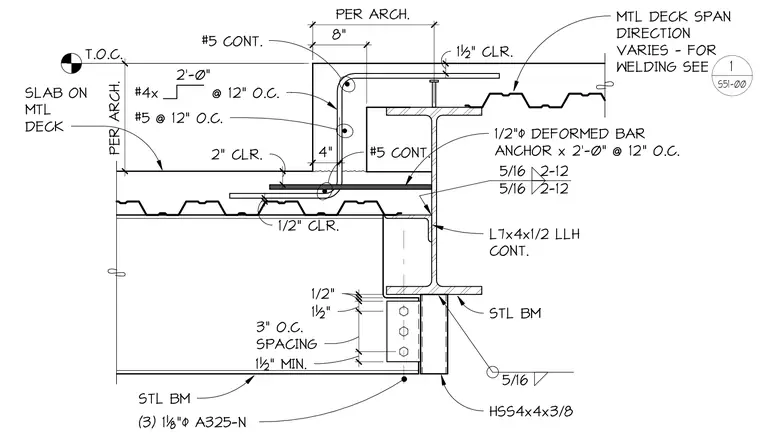

A stepped concrete slab on metal deck bears on a structural steel beam supported by an HSS column. A continuous angle (L7x4x1/2) is welded to the steel beam web with five-sixteenths inch fillet welds, carrying the lower metal deck and slab. Shear stud anchors (one-half inch diameter deformed bar anchors by two feet long at twelve inches on center) tie the concrete curb into the assembly. Additional continuous reinforcing bars (#5 and #4 bars) provide edge and curb reinforcement with specified concrete clearances. The bottom steel beam connects with three one-eighth inch A325-N bolts framing into an HSS4x4x3/8 hollow structural section column.
STL BM #4x @ 12" O.C. 8" PER ARCH. #5 CONT. 2'-0" L7x4x1/2 LLH CONT. 1 1 /2" 2" PER ARCH. #5 @ 12" O.C. 1½" CLR. (3) 1."% A325-N 1/2"% DEFORMED BAR ANCHOR x 2'-0" @ 12" O.C. 4" #5 CONT. 2" CLR. 1/2" CLR. SLAB ON MTL DECK 5/16 2-12 5/16 2-12 T.O.C. 1 /2" STL BM 1/2" 1½" 3" O.C. SPACING 1½" MIN. 1 1 /2" 6" 1 1 /2" 1 /2" 1 /2" 5/16 HSS4x4x3/8 MTL DECK SPAN DIRECTION VARIES - FOR WELDING SEE 1 S51-00
