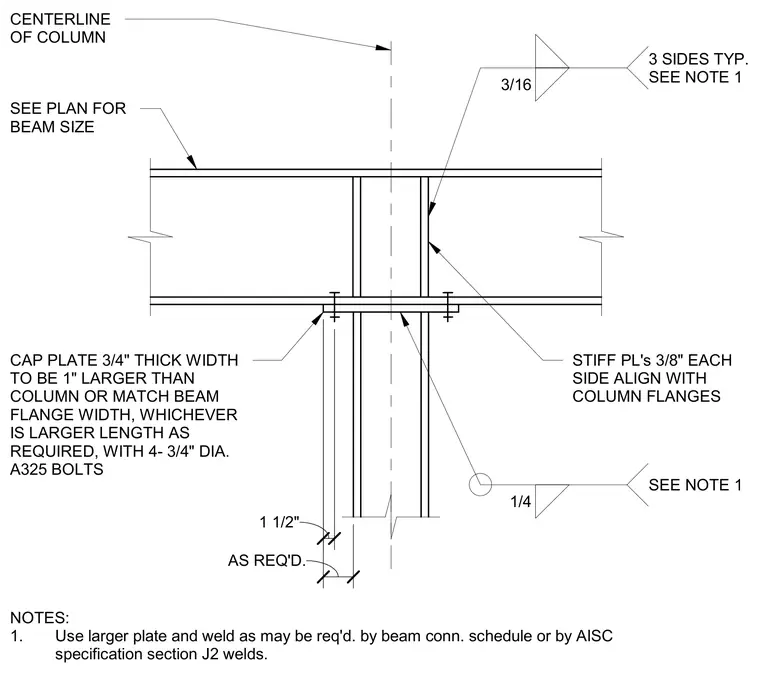

A structural steel beam frames into a column using a three-quarter-inch thick cap plate welded to the column support. The cap plate width is sized one inch larger than the column or matches the beam flange width, whichever is larger, and is fastened with four three-quarter-inch diameter A325 bolts. Three-eighths-inch stiffener plates are welded to each side of the column, aligning with the column flanges using three-sixteenths-inch fillet welds on three sides.
NOTES: 1. Use larger plate and weld as may be req'd. by beam conn. schedule or by AISC specification section J2 welds. STIFF PL's 3/8" EACH SIDE ALIGN WITH COLUMN FLANGES SEE PLAN FOR BEAM SIZE CENTERLINE OF COLUMN CAP PLATE 3/4" THICK WIDTH TO BE 1" LARGER THAN COLUMN OR MATCH BEAM FLANGE WIDTH, WHICHEVER IS LARGER LENGTH AS REQUIRED, WITH 4- 3/4" DIA. A325 BOLTS 3/16 3 SIDES TYP. SEE NOTE 1 1/4 SEE NOTE 1 1 1/2" AS REQ'D.
