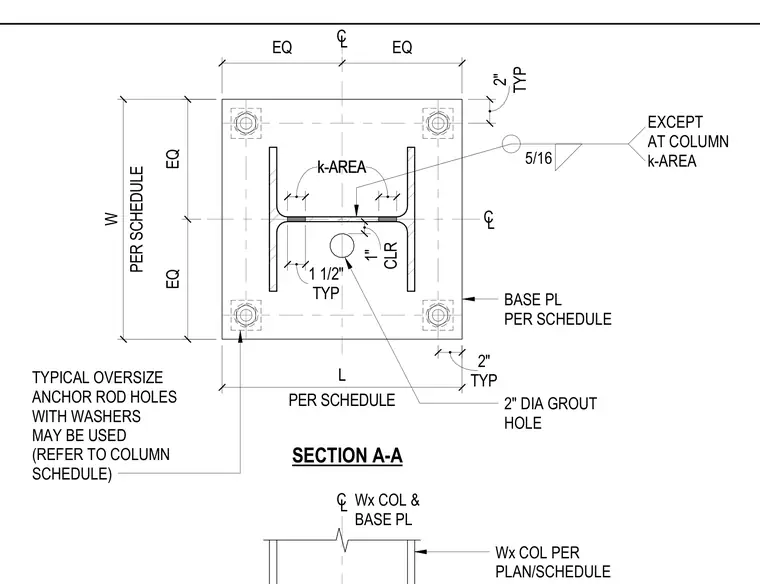

A structural steel column base plate is detailed in plan and section, supported by anchor rods located at each corner with typical oversize holes and washers per the column schedule. A five-sixteenths inch fillet weld secures the column to the base plate, with exceptions noted at the column k-area. A two-inch diameter grout hole is positioned centrally within the web of the wide flange column. Clearances and edge distances are explicitly dimensioned, including a one-inch clearance and symmetrical spacing.
CL CL TYP 2" PER SCHEDULE L PER SCHEDULE W CLR 1" CL Wx COL & BASE PL Wx COL PER PLAN/SCHEDULE BASE PL PER SCHEDULE SECTION A-A 2" DIA GROUT HOLE 5/16 EXCEPT AT COLUMN k-AREA TYPICAL OVERSIZE ANCHOR ROD HOLES WITH WASHERS MAY BE USED (REFER TO COLUMN SCHEDULE) EQ EQ EQ EQ k-AREA k-AREA TYP 2" TYP 1 1/2"
