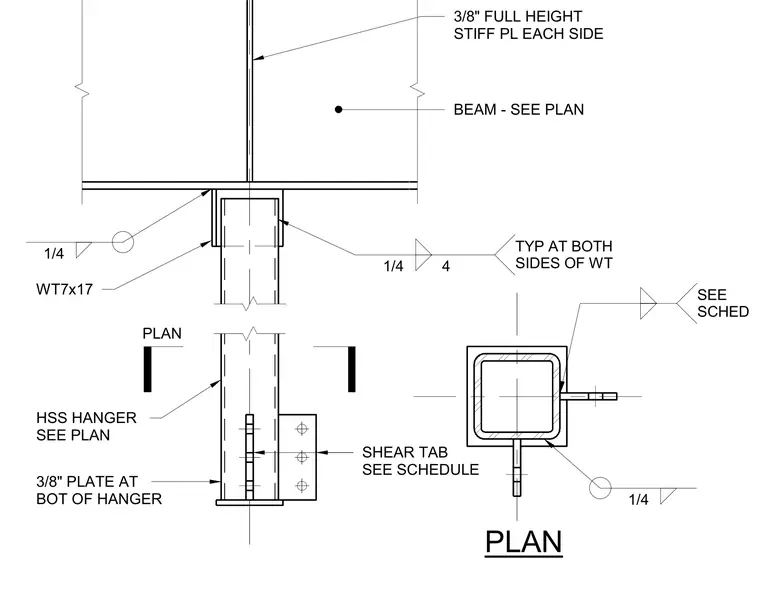

A hollow structural section hanger drops from a supporting beam sized per plan, fitted with three-eighths-inch full-height stiffener plates on each side and a WT7x17 section welded with quarter-inch fillet welds on both sides. A three-eighths-inch base plate occurs at the bottom of the hanger. A shear tab sized per schedule connects to the side of the hollow structural section with quarter-inch fillet welds.
PLAN PLAN BEAM - SEE PLAN 3/8" FULL HEIGHT STIFF PL EACH SIDE 3/8" PLATE AT BOT OF HANGER HSS HANGER SEE PLAN WT7x17 1/4 1/4 4 TYP AT BOTH SIDES OF WT SEE SCHED 1/4 SHEAR TAB SEE SCHEDULE
