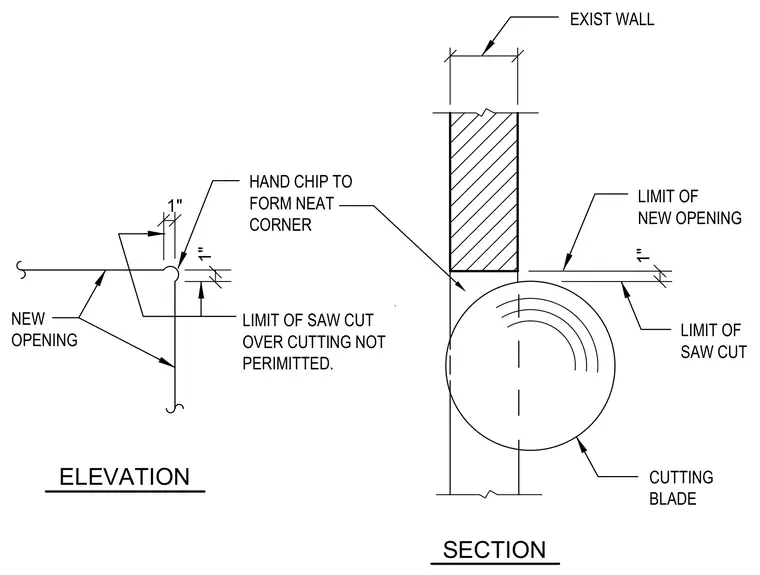

Sawcuts at new wall openings are restricted from over-cutting past the corner junction, requiring manual chipping to form a neat interior corner. The cutting blade diameter is limited relative to the edge of the new opening to prevent structural damage to the existing wall.
CORNER LIMIT OF SAW CUT OVER CUTTING NOT PERIMITTED. HAND CHIP TO FORM NEAT OPENING ELEVATION 1" 1" NEW LIMIT OF CUTTING BLADE SECTION SAW CUT EXIST WALL LIMIT OF NEW OPENING 1"
