Single ADA Entry Door with Card Reader and Operator

Elements

About this detail

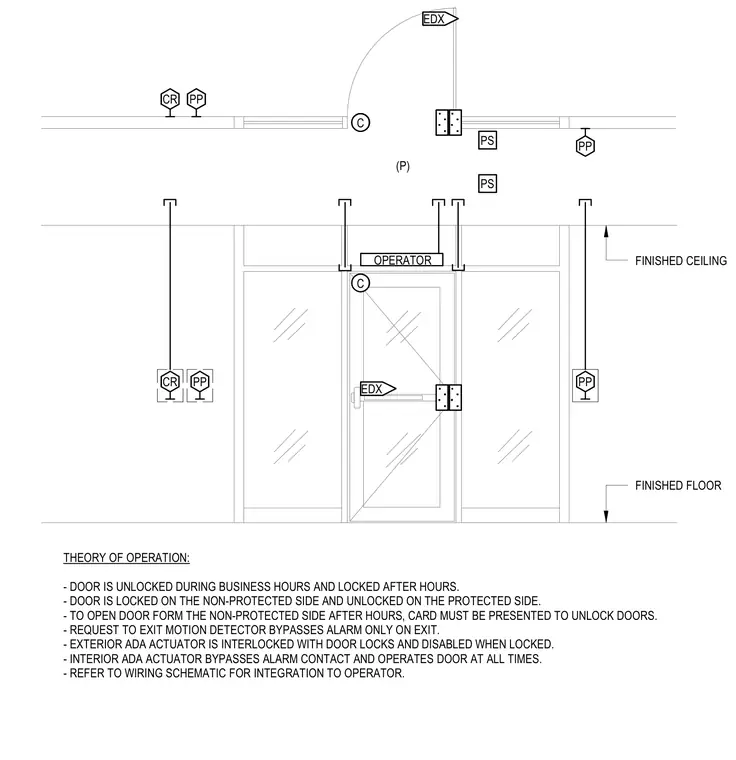

A single ADA entry door configuration is equipped with a card reader, request to exit motion detector, exterior and interior ADA actuators, and a door operator. Component placements relative to the finished floor and finished ceiling are included, accompanied by a complete theory of operation detailing locking schedules, alarm bypasses, and interlocks.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
