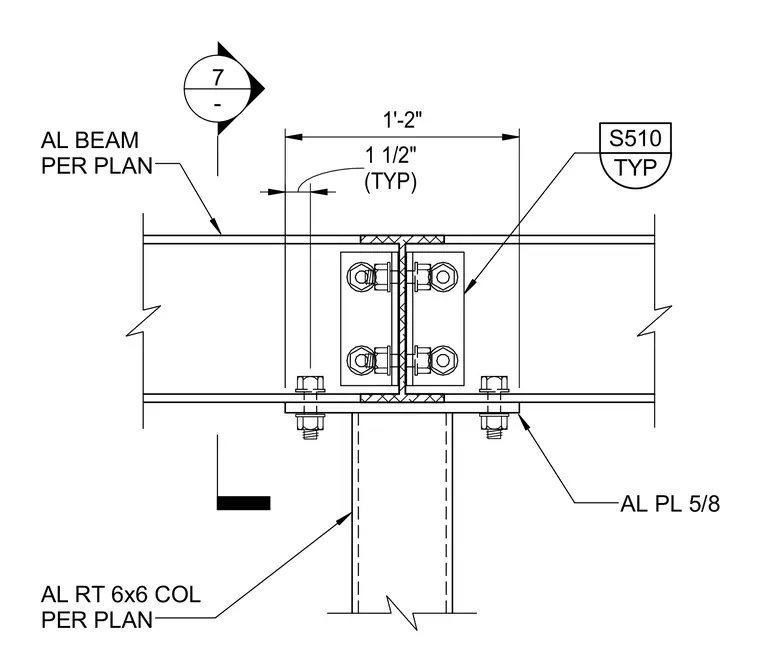

An aluminum beam connects to an aluminum rectangular tube column sized per plan. An aluminum plate measuring five-eighths inch thick by one foot two inches long is used at the connection, with typical dimensions of one and a half inches. Bolts secure the assembly as detailed per plan and reference sheet S510.
AL RT 6x6 COL PER PLAN AL BEAM PER PLAN AL PL 5/8 1'-2" (TYP) 1 1/2" 7 - TYP S510
