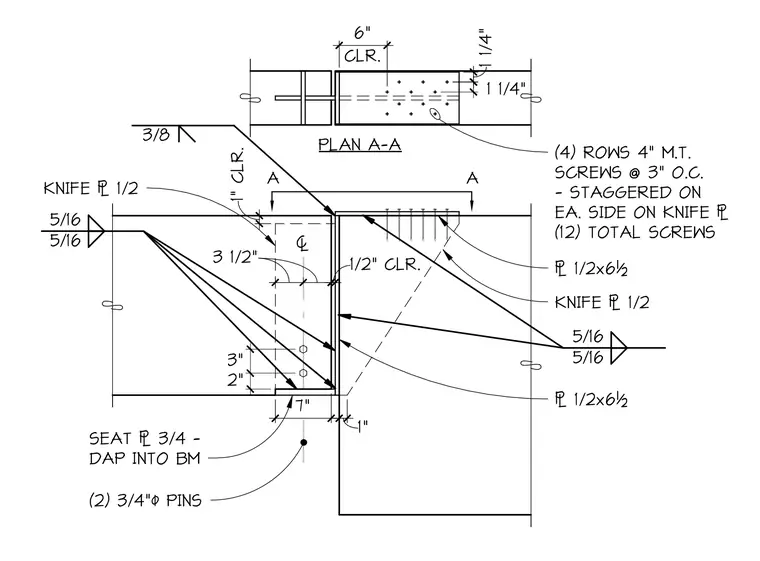

This structural mass-timber connection joins two glulam beams using a concealed one-half-inch thick knife plate and a three-quarter-inch thick seat plate dapped into the beam. The assembly is fastened with two three-quarter-inch diameter pins through the lower section and twelve total four-inch metal screws at three inches on center staggered on each side of the knife plate. A six-inch clearance is maintained at the joint, with varying clearances of one inch and one-half inch at the interface. Fillet welds of five-sixteenths inch secure the steel plate components.
1" CLR. 3" 2" 3 1/2" 3 1/2" CLR. 6" 1 1/4" PLAN A-A A A 1 1/4" KNIFE & 1/2 (2) 3/4"$ PINS SEAT & 3/4 - DAP INTO BM & 1/2x6½ & 1/2x6½ (4) ROWS 4" M.T. SCREWS @ 3" O.C. - STAGGERED ON EA. SIDE ON KNIFE & (12) TOTAL SCREWS 5/16 5/16 5/16 5/16 7" / 1/2" CLR. 1" 3/8 KNIFE & 1/2
