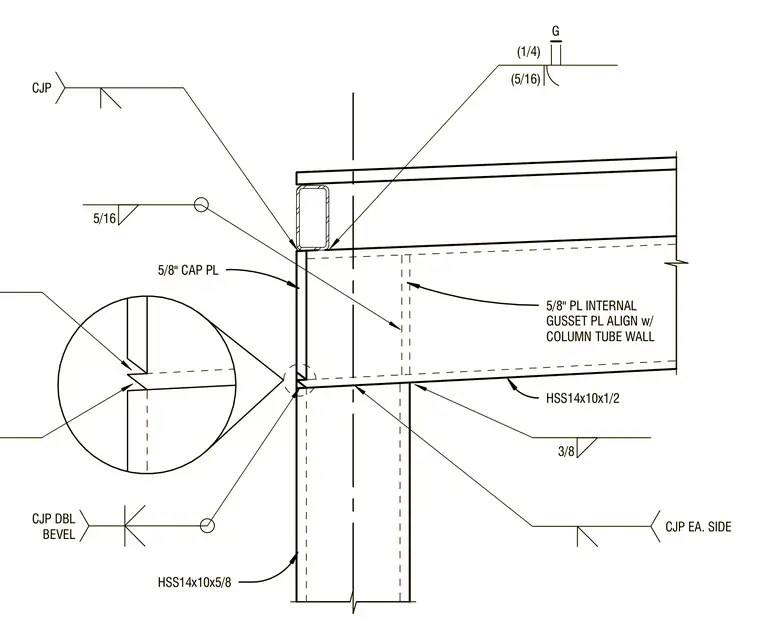

An HSS14x10x5/8 structural steel column connects to framing members using a 5/8-inch internal gusset plate aligned with the column tube wall. A 5/8-inch cap plate tops the assembly and is secured with complete joint penetration and double bevel welds. Fillet welds of 5/16-inch and 3/8-inch sizes provide additional connection strength along the intersecting HSS14x10x1/2 members. A magnified callout bubble details the precise weld root preparation and bevel configuration at the plate junction.
5/16 CJP 3/8 CJP EA. SIDE (5/16) (1/4) 5/8" PL INTERNAL GUSSET PL ALIGN w/ COLUMN TUBE WALL HSS14x10x5/8 HSS14x10x1/2 G 5/8" CAP PL CJP DBL BEVEL 5/16 CJP 3/8 CJP EA. SIDE (5/16) (1/4) 5/8" PL INTERNAL GUSSET PL ALIGN w/ COLUMN TUBE WALL HSS14x10x5/8 HSS14x10x1/2 G 5/8" CAP PL CJP DBL BEVEL
