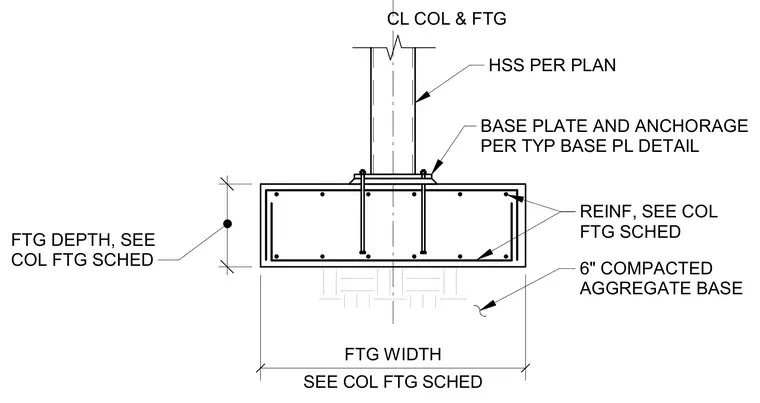

A hollow structural section column bears on a steel base plate secured by anchor bolts embedded into a reinforced concrete footing. The footing sits atop a six-inch compacted aggregate base with dimensions determined per the column footing schedule. Reinforcement within the footing is provided as specified in the schedule.
CL COL & FTG HSS PER PLAN BASE PLATE AND ANCHORAGE PER TYP BASE PL DETAIL FTG DEPTH, SEE COL FTG SCHED 15" SEE COL FTG SCHED FTG WIDTH 6" COMPACTED AGGREGATE BASE REINF, SEE COL FTG SCHED
