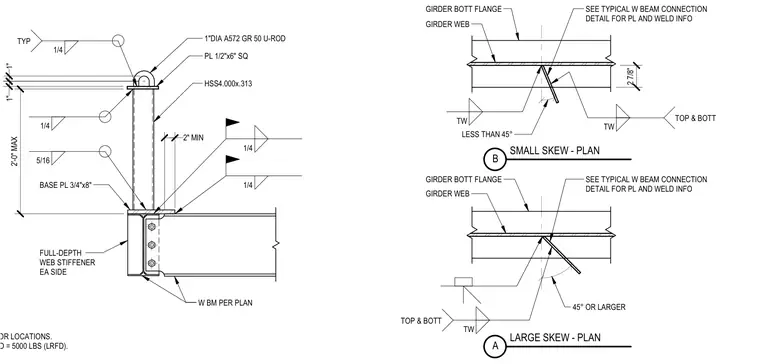

A skewed beam-to-beam connection supports a hollow structural section post measuring 4.000 inches by 0.313 inches with a one-half-inch by six-inch square plate at the top. A one-inch diameter A572 Grade 50 U-rod anchors into the top plate with quarter-inch fillet welds top and bottom. The base plate measures three-quarters of an inch by eight inches and is welded to the wide flange beam per plan with quarter-inch and five-sixteenths-inch fillet welds. Full-depth web stiffeners are provided on each side of the supporting wide flange beam. Plan views provide detailing for both small skews under forty-five degrees and large skews of forty-five degrees or larger relative to the girder bottom flange and web. The design load is specified at 5000 pounds under LRFD criteria, with a maximum height of two feet and minimum clearances noted.
GIRDER BOTT FLANGE GIRDER WEB LESS THAN 45° TW TW TOP & BOTT SEE TYPICAL W BEAM CONNECTION DETAIL FOR PL AND WELD INFO SMALL SKEW - PLAN B 2 7/8" 1"DIA A572 GR 50 U-ROD PL 1/2"x6" SQ HSS4.000x.313 W BM PER PLAN FULL-DEPTH WEB STIFFENER EA SIDE 1" 1" 5/16 1/4 TYP 1/4 1. SEE ARCH FOR LOCATIONS. 2. DESIGN LOAD = 5000 LBS (LRFD). 2'-0" MAX 2" MIN 1/4 BASE PL 3/4"x8" 1/4 TW TOP & BOTT 45° OR LARGER SEE TYPICAL W BEAM CONNECTION DETAIL FOR PL AND WELD INFO GIRDER BOTT FLANGE GIRDER WEB LARGE SKEW - PLAN A
